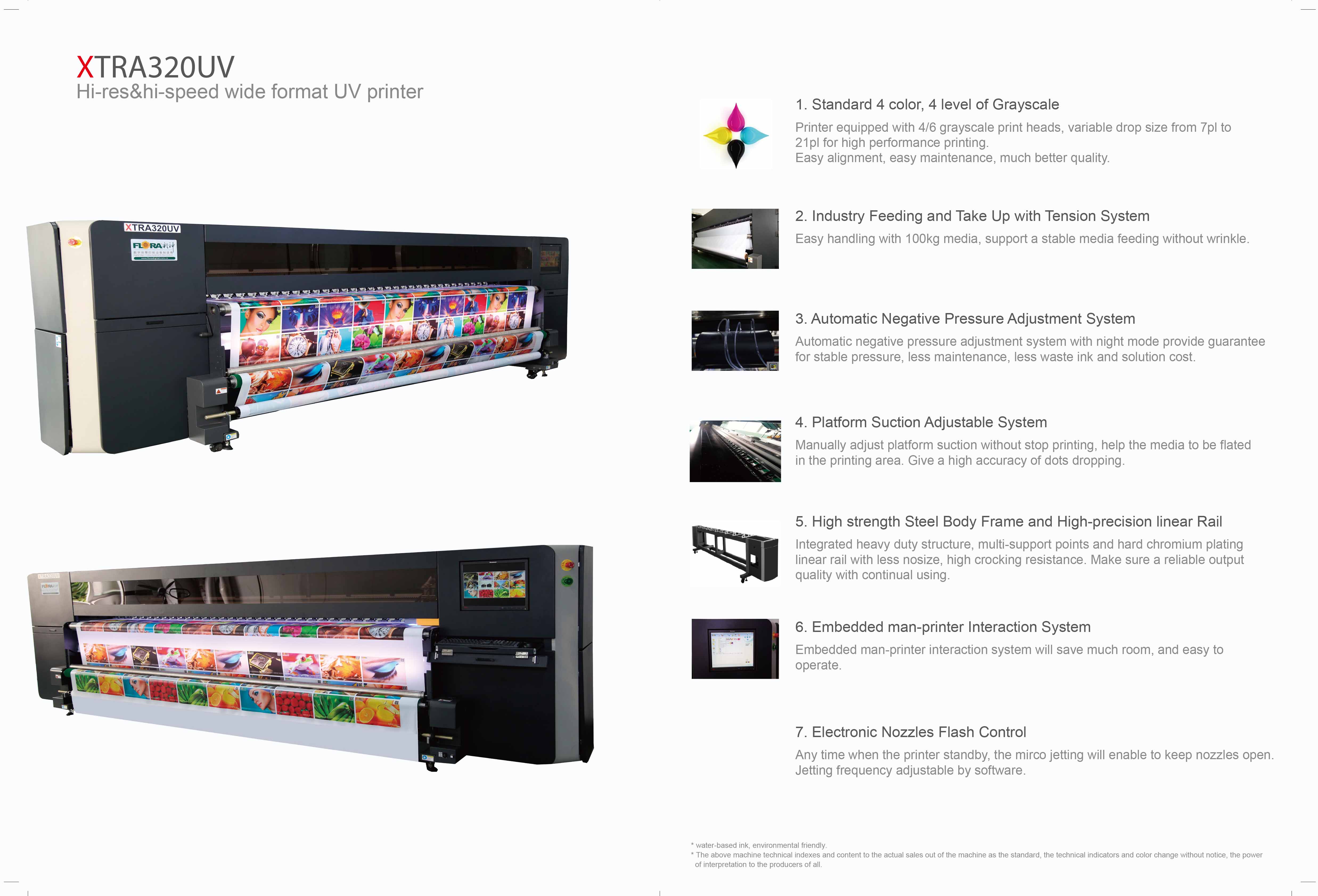

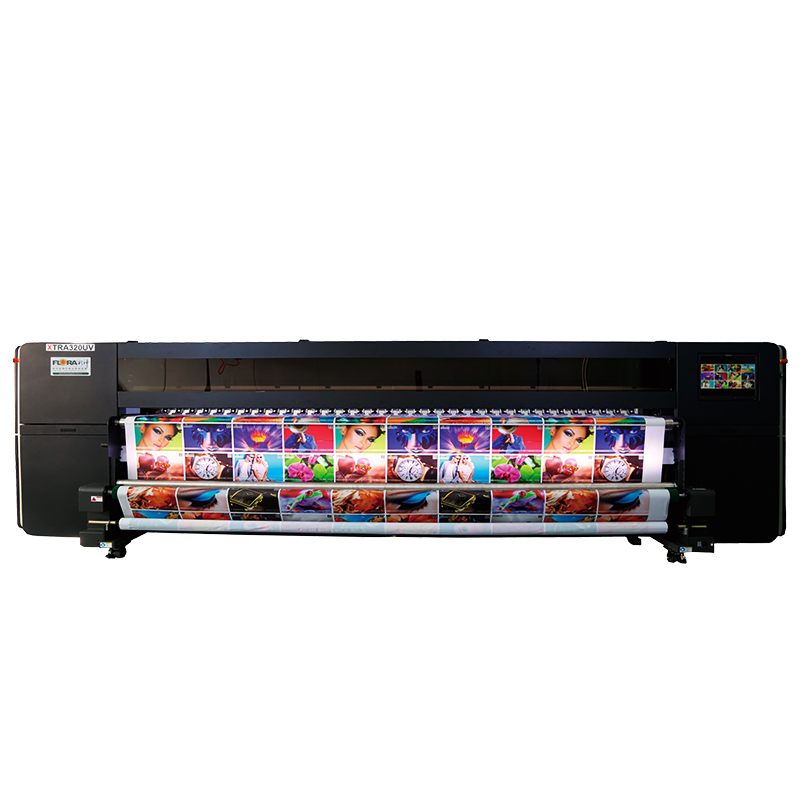

Flora XTRA320UV

FLORA pinch roller UV printer

Grayscale inkjet technology, printhead variable drop size from 6 to 18pl Large printing format 320cm

Excellent coverage with standard CMYK vivid and bright colors

Plenty of color scheme including white and varnish, light magenta and light cyan

Upgraded feed-in and take-up system elimiate media wave and winding problem

Excellent stepping motor and movement module supoort high presicion printing

Send inquiry now Download PDF

Data sheet
Printhead	4-10 KM1024i 6pl printhead/ 2-8 Ricoh G5 for option
Inkjet speed		Two-row head	Three-row head
	Sketch mode	26 ㎡/h	78 ㎡/h
	High speed mode	19 ㎡/h	58 ㎡/h
	Precision mode	12㎡/h	36㎡/h
	Ultra high precision mode	9㎡/h	27㎡/h
resolution	Up to 605x1200dpi
Inkjet technology	On demand piezoelectricity inkjet mode, support gray level printing
Ink type	LED UV ink environment friendly, excellent colors, high durability, FLORA LED UV inks
Color	6 Colors： C+M+Y+K+W+V
Cartidge	2.5L
RIP software configuration	Photoprint 12, Caldera 11 & Onyx 12(Optional）
Color control	International standard ICC color control, curve and density adjustable
File format	Tiff, Jpeg, Postscript, EPS, Pdf，etc.
Media system
Fabric collection and delivery system	Vinyl, pet, film, blockout, backlit, synthetic paper, banner, etc. Easy to load and unload materials, suitable for various sizes of materials

Media roller specification	The maximum width is 330cm. The diameter is 32cm and the weight is up to 80kg*.
Data transmission
Data interface	High speed USB transmission
Machine size
Machine	492x96.5x155cm
Packing box	503x100x170cm
Machine weight
	950KG
Operating environment
Temperature	20-30℃
Relative humidity	35 - 65%, non-condensing.
Power requirements
Maximum power	2650W
Access parameter	Input voltage: 200 VAC to 240VAC, single phase, 50/60Hz, 10A
Warranty period
	One year (please consult your local dealer for details)
