| Data sheet | |||
| Printhead | 4-15 KM1024I 6pl grayscale printhead | ||
| Printing speed | Two-row head | Three-row head | |
| Express mode | 100 ㎡/h | 136 ㎡/h | |
| Production mode | 73 ㎡/h | 103 ㎡/h | |
| Backlit mode | 54㎡/h | 68㎡/h | |
| resolution | Up to 726x1440dpi | ||
| Inkjet technology | Piezoelectric nozzle inkjet, grayscale printing technology | ||
| Ink type | LED UV ink environment friendly, excellent colors, high durability, FLORA LED UV inks | ||
| Color | 4, 6, 8 colors：C+M+Y+K，C+M+Y+K+W+V，C+M+Y+K+Lc+Lm | ||
| Cartride capacity | 2.5 L/color | ||
| RIP software configuration | Photoprint 12, Caldera 11 & Onyx 12(Optional） | ||
| Color control | International standard ICC color control, curve and density adjustable | ||
| File format | TIFF, JPEG, EPS, PDF, etc | ||
| Media system | |||

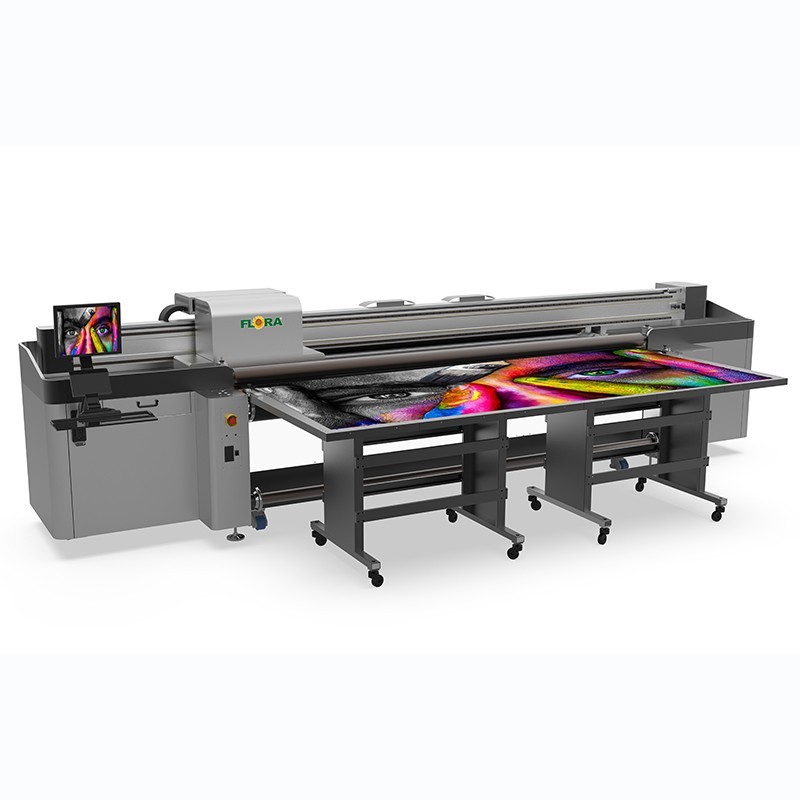

| Material handling | Vacuum adsorption, and flat belt conveying with outreach tables to extend printing size | ||
| Sheet specification | 330x250cm | ||
| Media roller specification | The maximum width is 330cm. The diameter is 40cm and the weight is 100kg. | ||
| Medium thickness | 51mm | ||
| Data transmission | |||
| Data interface | USB 3.0 | ||
| LED UV lamp system | |||
| LED UV cold light source, energy saving and environment friendly , low power consumption, long working life. Each LED UV lamp energy is adjustable, suitable for different material. | |||
| Machine size | |||
| Machine | 600x155x160cm | ||
| Packing box | 586x187x206cm | ||
| Machine weight | |||
| 3000KG | |||
| Operating environment | |||
| Temperature | 20-30℃ | ||
| Relative humidity | 35 - 65%, non-condensing. For mixed materials, the relative humidity is recommended to be higher than 40% to effectively control static electricity. | ||
| Power requirements | |||
| Maximum power | 8000W | ||
| Access parameter | Input voltage: 200 VAC to 240VAC, single phase, 50/60Hz, 320A x 2 | ||
| Warranty period | |||
| One year (please consult your local dealer for details) | |||
