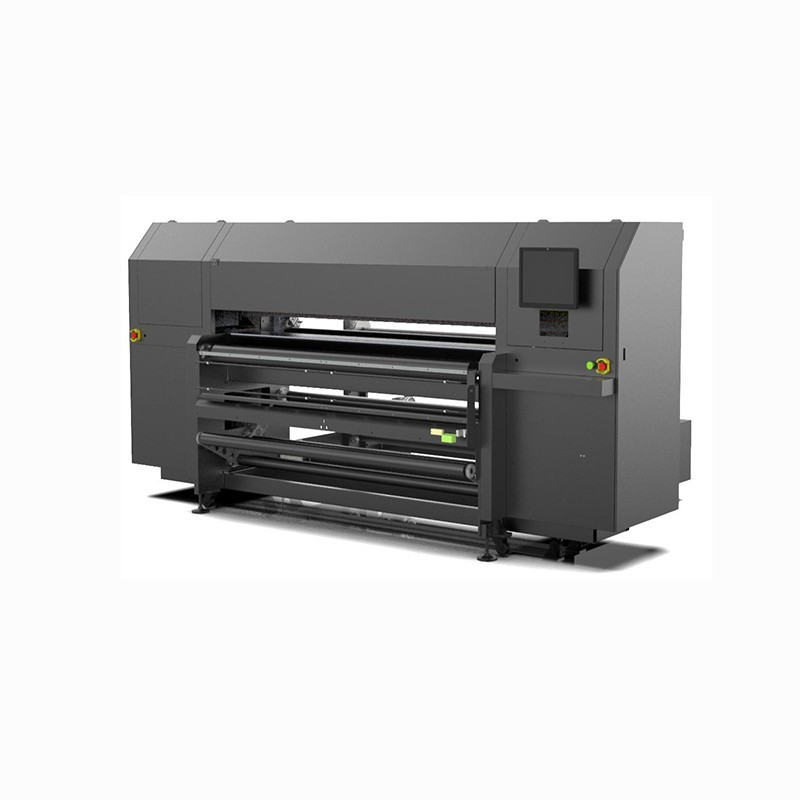

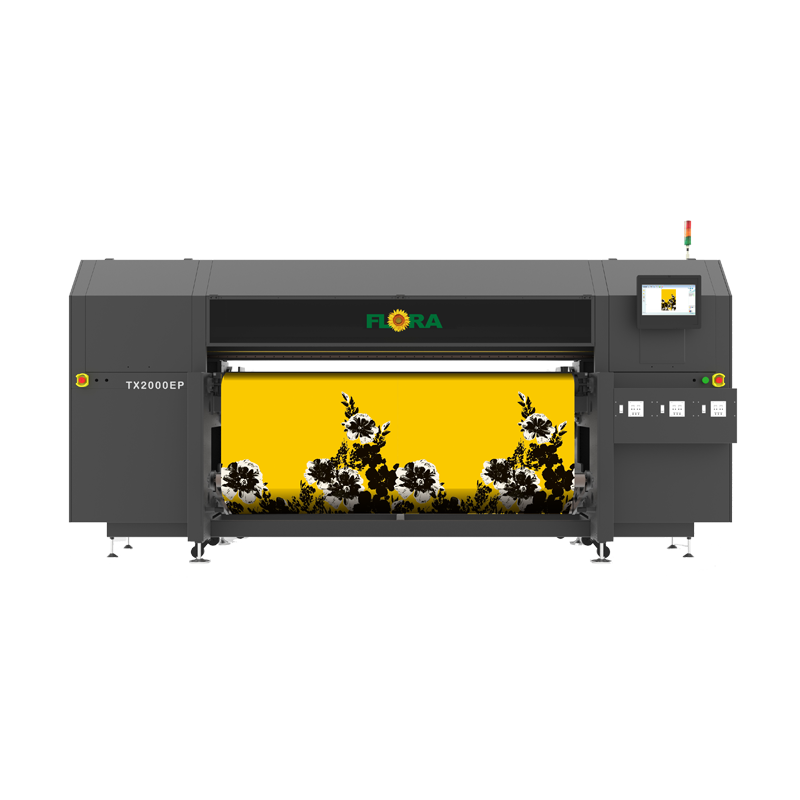

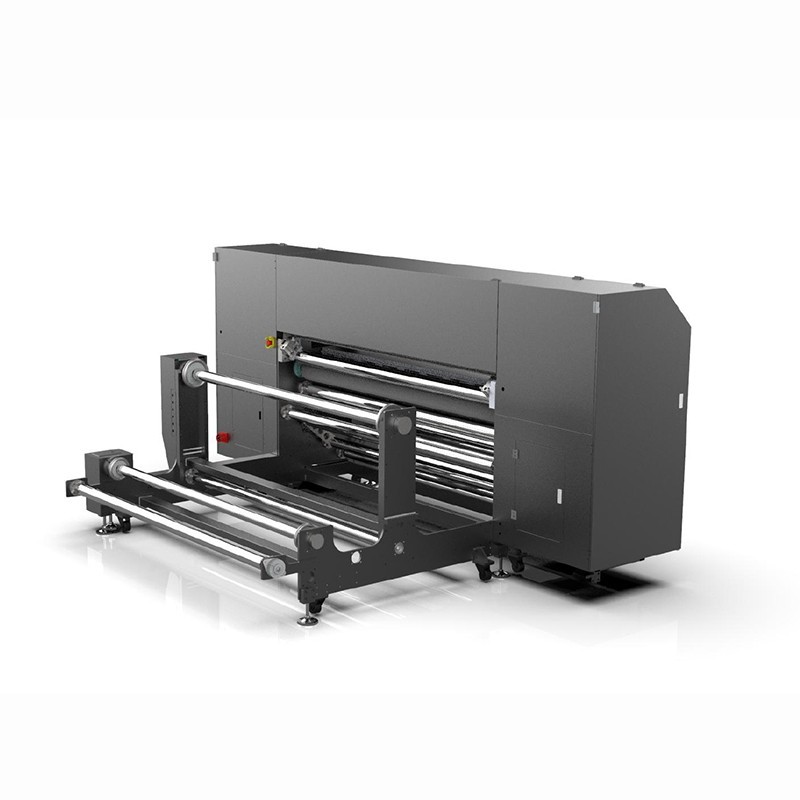

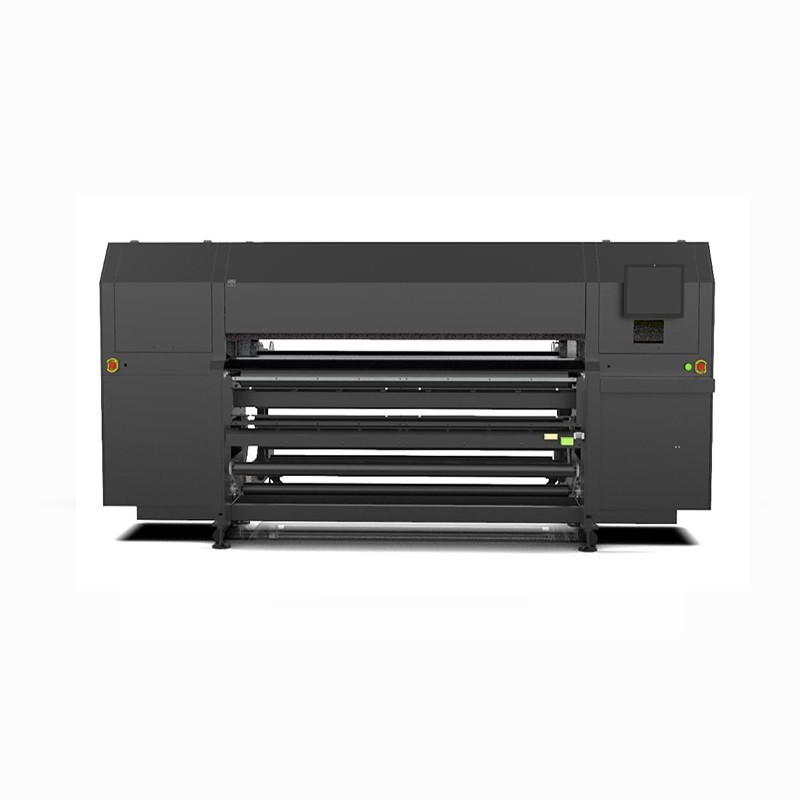

| Model | TX-2000EP |
| Printheads | 4-8 EPSON injustrial head |
| Printing speed |
310 m2/h(4 head) 620 m2/h(8 head) |
| Resolution | 300 x 600;600 x 600;1200 x 1200 dpi |
| Ink type | Dye sublimation ink |
| Color | C.M.Y.K.O.B.FY.FR |
| Ink supply system | Automatic degassing, automatic negative pressure system |
| Print head maintenance | Automatic cleaning, automatic moisturizing |
| RIP software | Photoprint Flora,NeoStampa |
| Media system | Roll-to-Roll |
| Print width | 2000mm |
| Media width | 2050mm |
| Material | Heat transter paper |
| Roller dimension | The maximum diameter of 1200mm |
| Bearing capacity | 1200kg |
| Heating system | PID constant temperature control |
| Printer size | 3965x1065x1825mm |
| Package Size | 5390x2145x2190mm |
| Weight | 950kg |
| Temperature | 25-28 °C |
| Package | 5260x2280x1860mm |
| Weight | |
| 880KG | |
| Temperature | 20 to 30 °C |
| Relative humidity | 50% - 60%, |
| Power supply |
Printer: AC220V 10% 50/60HZ,31A Dryer: AC220V 10% 50/60Hz,9A |
| Pressure | 0.6Mpa(Dry air) |
| Warranty | One-year warranty(Please contact local distributors for more details.) |
*Supporting multiple printing modes, fast adapting to different heat transfer papers from3 38g to 120g, no need to adjust parameters repeatedly.
*linear motor(maglev guiderailers) is applied in X axis to ensure high resolution, stability, and fast carriage moving speed.
*PLC and touch panel interface are applied to enable a more stable， convenient and humanized system.
*Auto ink-wipe and pause when paper runs out, man-free operation.
*Hi-precision reduce gears and transmission shaft are applied to make sure a high precise and stable stepping.
*Heating system stops automatically while carriage is printing.
* Multiple rollers are applied in feed-in and take-up stytem to improve paper takeup aligning, and elimiate paper wrinkles.
