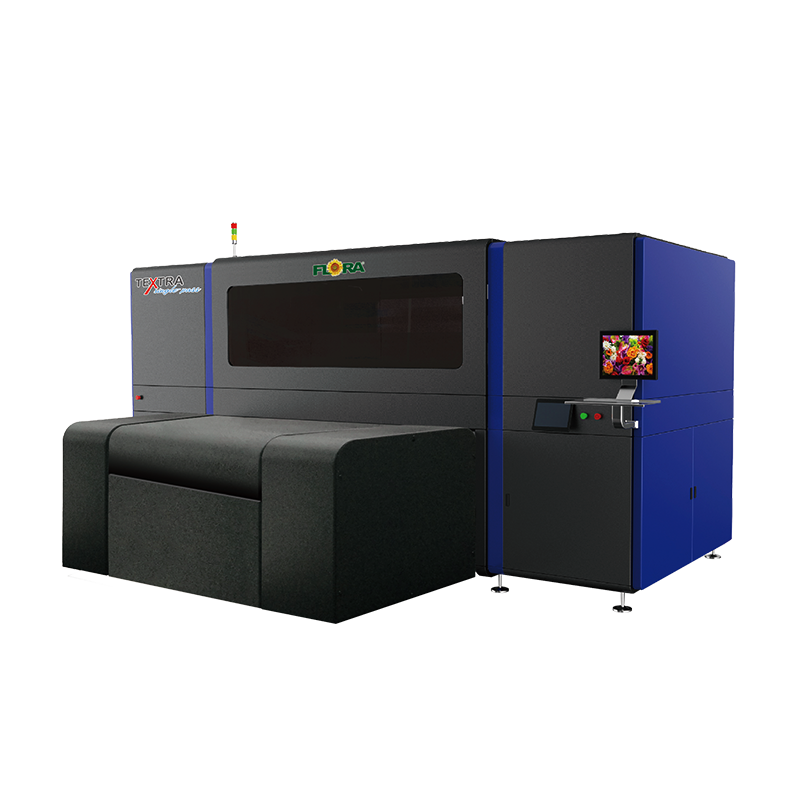

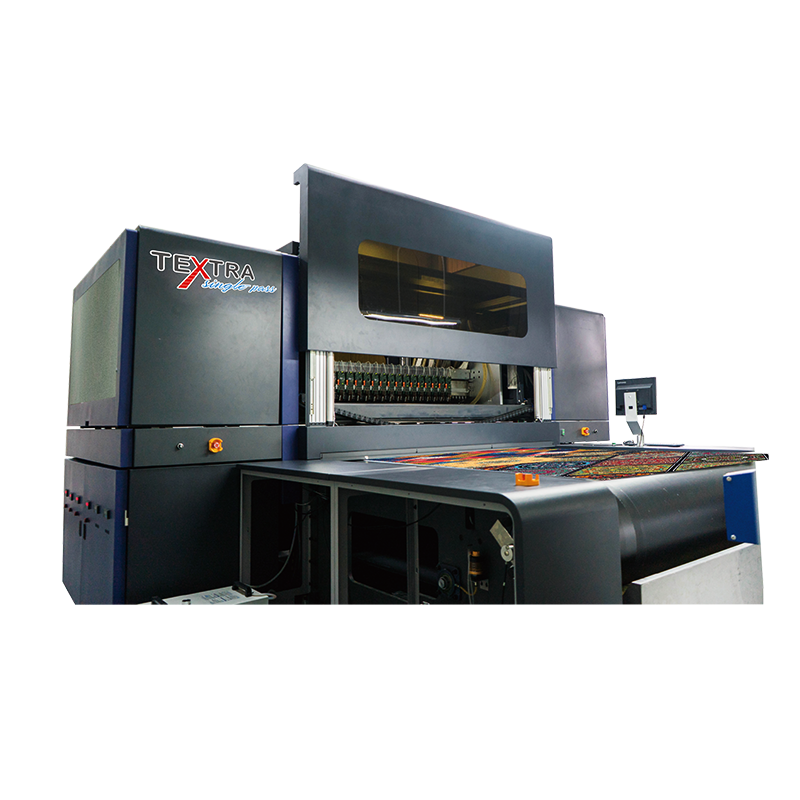

FLORA one pass textile printing system
Highly integrated printing system including feed-in unit, printing unit, drying unit and take-up unit
Printing speed up to 80m/min linear meter
Suitable for reactive ink , disperse ink , pigment ink to support mutlple applications to different textiles
Pulling-type printhead unit design makes installation and maintenance easy
Smart man-free control system with minitor system through the whole production
| Model | SPT-1800 |
| Max Printing Width | 1730mm |
| Printhead Type | SAMBA |
| Printing Platform Height | 1050MM |
| Fabric Type | Natural fiber,Polyerter,Transfer paper |
| Ink Type | Reactive,Acid,Disperse,Pigment |
| Power Supply | Triphase 380V,50Hz |
| Installed Power | 40Kw |
| Printing unit size(LxWxH) | 6600 X 4600 X 2850 (mm） |
| Printer Weight | 12000KG |
| Operation condiction | Temperature：20-25；Humidity：45-55% |
| Total Weight | 3KG |
| Printing System(Color) | 6 |
