| Printing Technogy | |

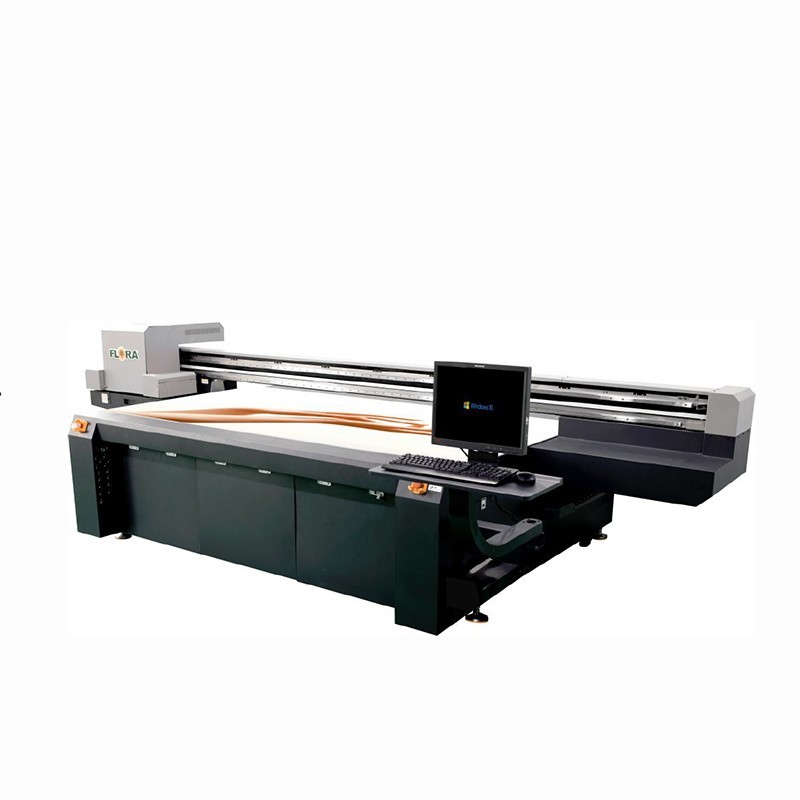

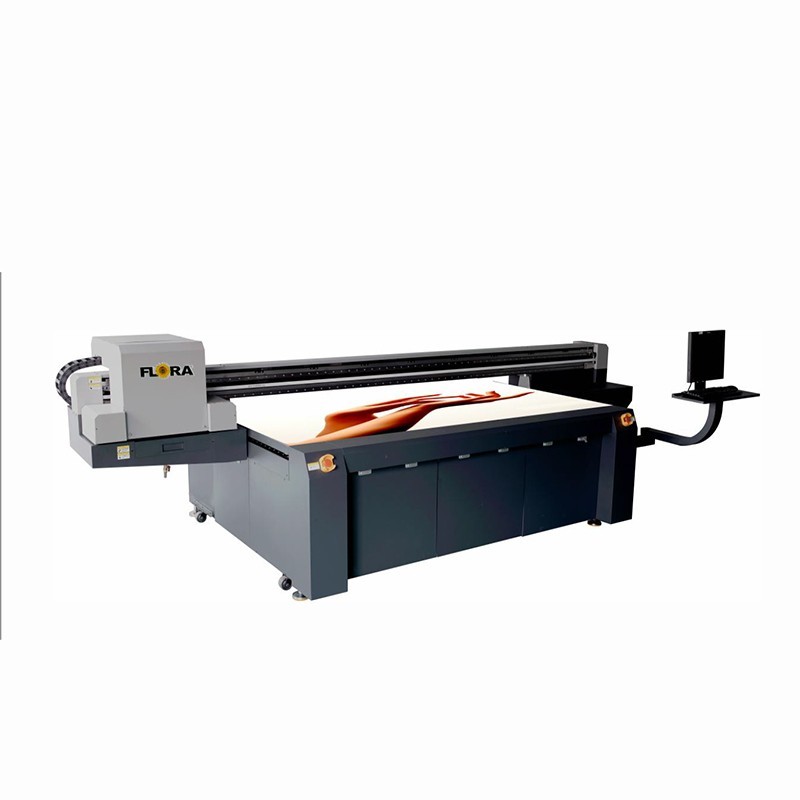

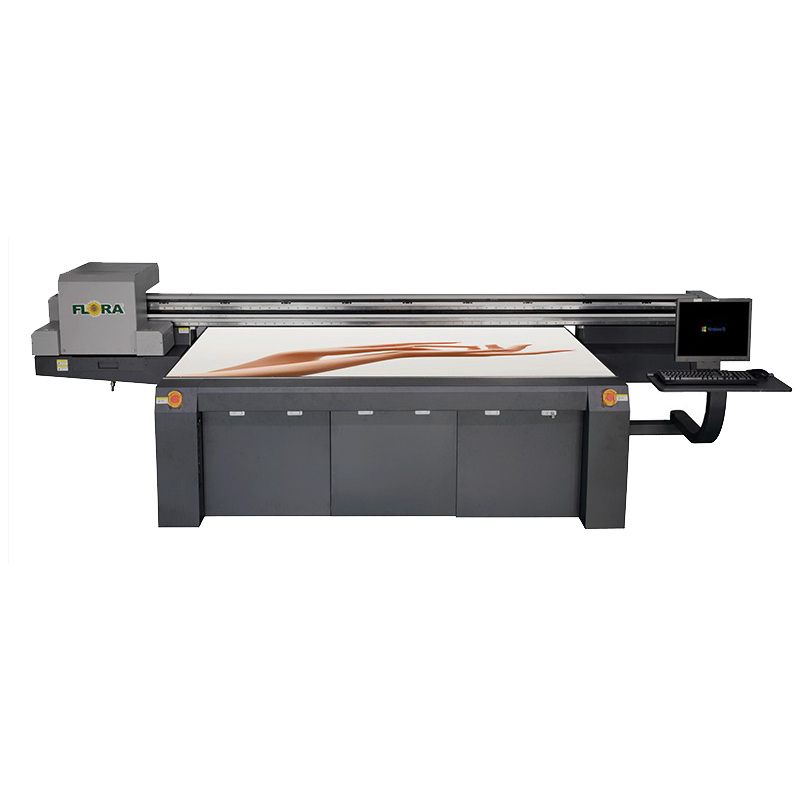

| Model | F25 flatbed printer |
| Printhead | 3-row 9 heads, Ricoh G5/G6(linear motor for option) |
| Printing speed | 42sqm/hr(G5) 58sqm/hr(G6) |
| Resolution | up to 600dpi, 900dpi, 1800dpi,2400dpi |
| Printhead technogy | Piezoelectric inkjet, UV LED Curing, Grayscale Technogy |
| Ink type | LED UV inks |
| Color | Max 8 colors(for option) CMYKLcLm+W+V, white and varnish printing supported |
| Cartridge capacity | 1.5 liter/color, adjustment curves, density adjustment |
| Cartridge capacity | 1.5 liter/color, adjustment curves, density adjustment |
| RIP Software | Photoprint Server Flora, Onyx12, Caldera12 compatible |
| Color management | ICC based color, adjustment curves, density adjustment |
| File format | TIFF,JPEG,Postscript,EPS,PDF etc. |
| Media | |
| Handing | High-precision vacuum platform is applied to rigid panels. medial locaitng pin, anti-below function for option. |
| Media size | 2.54x1.3m |
| Media weight | 50kg |
| Media type | Wood Board,aluminum board,door plank,paper board,PVC,ceiling,glass,ceramic,acrylic,fabric,banner,backlit,soft film,smallpox,stickers etc, up to 100mm thickness |
| Data transfer | |
| Interface | USB 3.0 |
| UV curing system | |
| LED UV lamp, energy-saving, envirment friendly curing solution, and long working life. Every single LED light power can be adjusted to meet different material request. | |
| Dimension | |
| Printer | 4000x2100x1580mm |
| Package | 5260x2280x1860mm |
| Weight | |
| 880KG | |
| Operating Conditions | |
| Temperture | 20 to 30 °C |
| Humidity | 40% - 80%, non-condensing. For mixed material, 40% above humidity recommened to control static and ensure printing quality |
| Electricity requirements | |
| Power | system:2560w;chiller, suction motor:4500W |
| Requirements | Input voltage:220 to 240V AC, single-phase,50/60HZ,32A |
| Warranty | |
| One-year warranty(Please contact local distributors for more details.) | |
