| Print control | ||

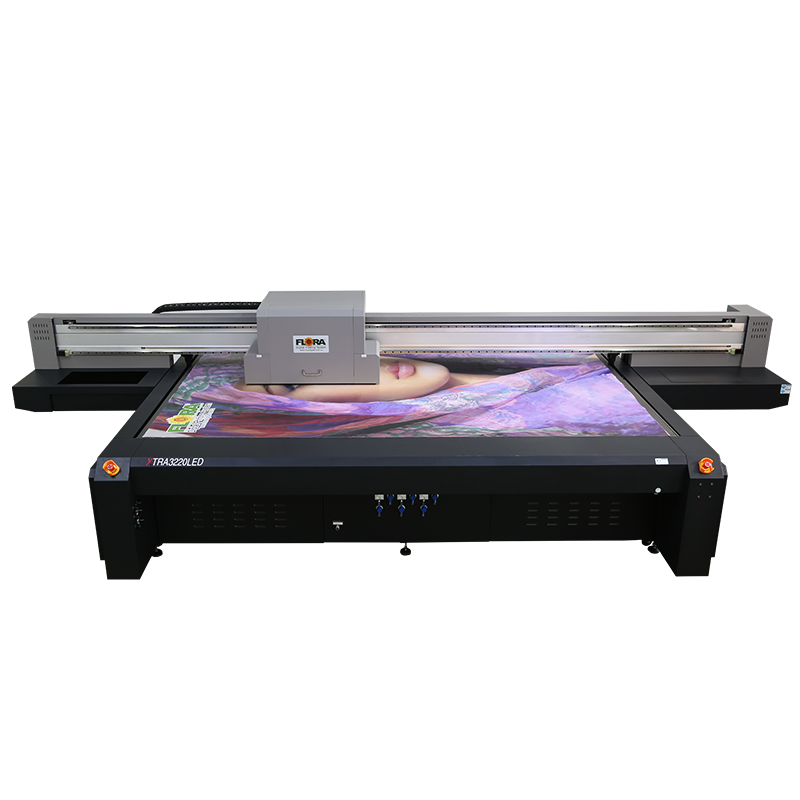

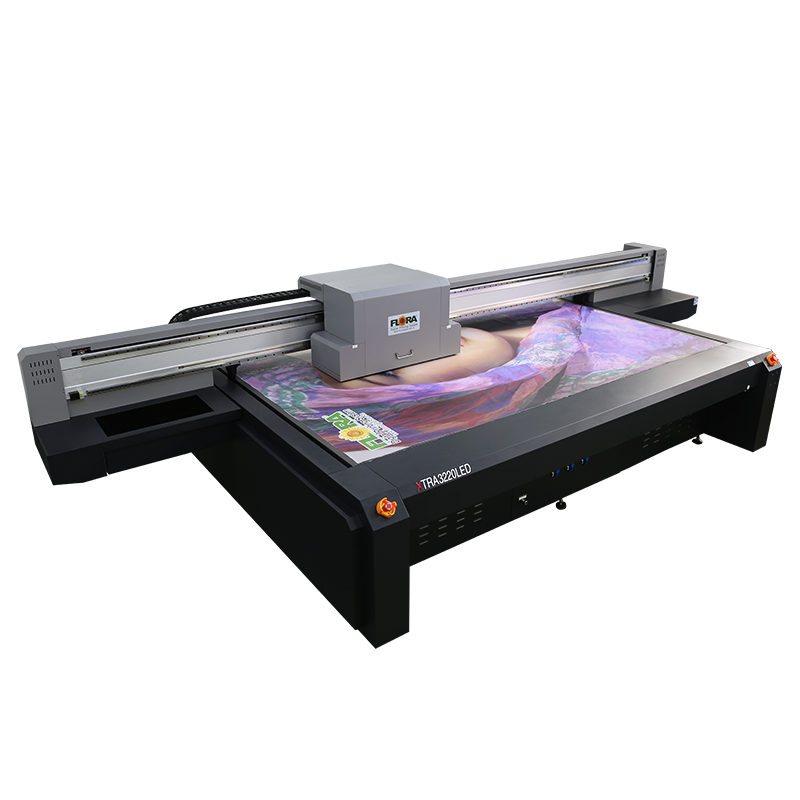

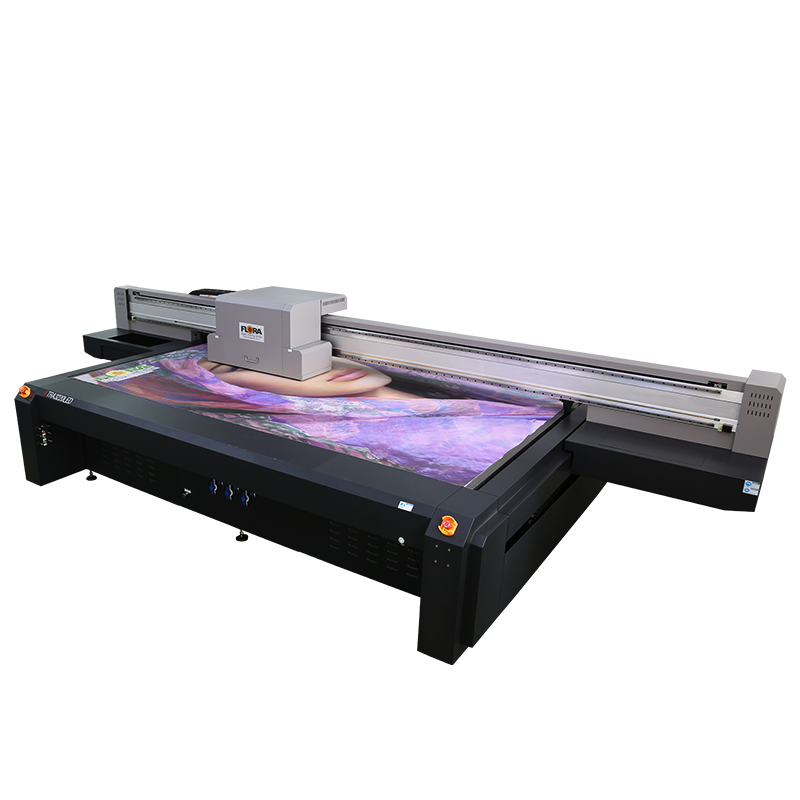

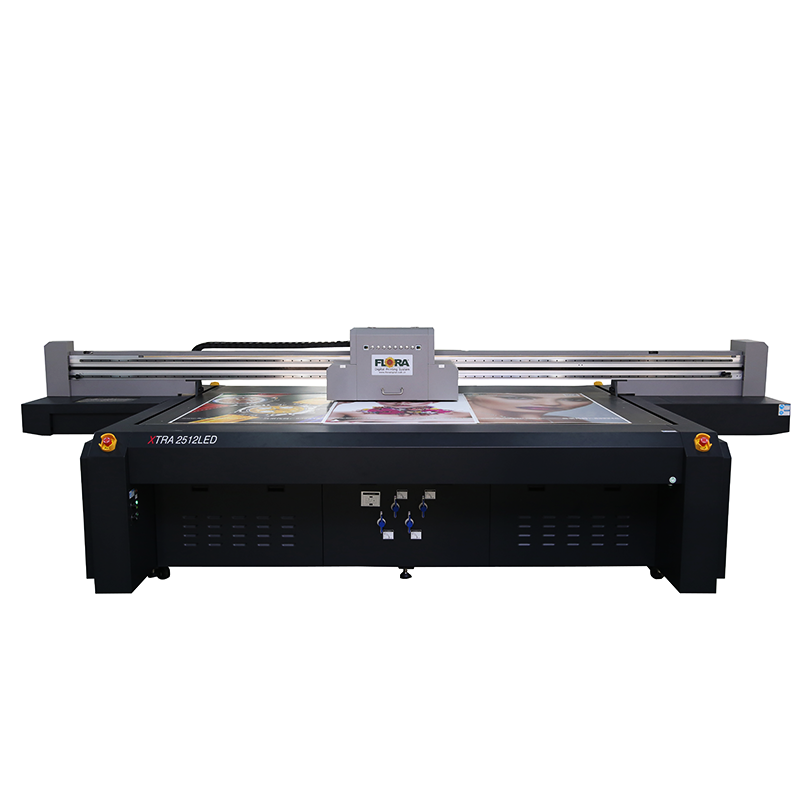

| Model | XTRA3220LED | XTRA2512LED |
| Printhead type | KM1024i(6pl) | KM1024i(6pl) |
| Draft mode | 190 ㎡/h | |
| Express mode | 165 ㎡/h | 144 ㎡/h |
| Production mode | 113 ㎡/h | 102 ㎡/h |
| Quality mode | 85 ㎡/h | 79 ㎡/h |
| Resolution | Up to 726x1440dpi | |
| Inkjet technology | on-demand piezoelectric inkjet, UV inkjet, grayscale printing | |
| Ink type |
Environmental friendly UV ink with exellent color and high outdoor durability, FLORA UV inks |
|
| Color | Up to 8 colors: C + m + y + K + LC + LM + W + V, supporting white and spot color varnish printing | |
| Cartridge campacity | 2.5 L/color | |
| RIP software | Photoprint Flora Edition 12，Onyx12，Caldera12 | |
| Color control | International standard ICC color control, curve and density adjustable | |
| File format | TIFF, JPEG, Postscript, EPS, PDF, etc | |
| Media system | ||
| Printing flatbed | Powerful hi-precision adjustable vacuum flatbed with sectional zones | |
| Flatbed size | 320*200cm | 254*120cm |
| Media specification | max 50kg/㎡ | max 50kg/㎡ |
| Media thickness | 100mm | 100mm |
| Data transmission | ||
| Data interface | USB 3.0 | |
| LED UV lamp system | ||
| LED UV cold light source, energy saving and environmental protection, low power consumption but long working life. Each LED UV lamp energy is adjustable, suitable for different material. | ||
| Machine size | ||
| Machine | 430x410x147cm | 480x260x144cm |
| Packing box | 430x225x180cm | 500x225x180cm |
| Machine weight | ||
| 1800KG | 1500KG | |
| Operating environment | ||
| Temperature | 20-30℃ | |
| Humidity | 35 - 65%, non-condensing. For mixed materials, the relative humidity is recommended to be higher than 40% to effectively control static electricity and ensure the quality of plotting | |
| Power requirements | ||
| Maximum power | 8000W | |
| Access parameter | Input voltage: 210 VAC to 230VAC, single phase, 50/60Hz, 320A | |
| Warranty period | ||
| One year (please consult your local dealer for details) | ||
